Article: What Apple Stuffed Inside iPhone 6 Plus

Love it or hate it, there's no question that Apple's iPhone line is popular, and while the numbers haven't officially been announced yet, the company has already broken its record for pre-orders online (roughly 4 million in a 24-hour period compared to the iPhone 5’s 2 million). The new Smartphone comes in two flavors -- the 6 and the 6 Plus. In this teardown, we focus on Apple's flagship, the larger "phablet" 6 Plus.

The phone comes in three colors, including silver, gold, and "space grey" instead of the typical dirt-absorbent white of the earlier models, because of the phone now has an easily removable battery and the fingerprint cable no longer rips off when opening the case. Enough about the iPhone's aesthetics and sales numbers, let's get down to business and see what makes the 6 Plus tick!

Case features

The 6 Plus case features an aluminum back plate with a typical plastic front, which is held together with Pentalobe screws. A noticeable "bump" from the improved optics of the camera runs along the case edge that raises it about 0.6mm, not a big deal because the optics provide improved image quality. Once the case is cracked open, you’ll notice the hardware is fastened with Philips screws, making them easier to disassemble. The first thing that stands out when looking inside is the size of the battery. Apple went with a massive Li-Ion battery rated at 2,915mAh that has a reported 16-day standby time, which is removed using an adhesive pull-tab. The camera and Retina display LED back-plate are clearly visible along with the home button with integrated Touch ID fingerprint scanner.

Display takes

The iPhone 6 Plus has a massive 5.5-inch display that spans the phone literally from one edge to the other. Like most of the other manufacturers on the market (HTC, LG, Samsung,…...), Apple decided to pack their Retina HD Display with as many pixels as possible per-square inch, in the case of the Plus- 401-ppi. That’s 401 pixels per inch and a whopping 2,205.5 on the whole display! You’ll notice that Apple has redesigned how the home button connects to the phone’s main board, completely removing the short, fragile cable featured on the 5s. The new redesign features a longer cable that’s routed to the opposite end of the phone, making it easier to remove the inside components without damaging the cable.

Apple A8 APL1011 SoC stars

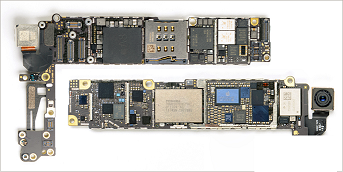

Getting to  the matter, we can see what makes the iPhone 6 Plus function with a clear view of the Apple A8 APL1011 SoC in all of its glory. Apple went with TSMC (Taiwan Semiconductor Manufacturing Company) to manufacture the chip rather than Samsung, which is clocked at 1.4GHz and features 1GB of Elpida LPDDR3 RAM. We can also see a Qualcomm MDM9625M LTE modem, Skyworks Low Band LTE PAD and an TriQuint TQF6410 3G EDGE Power Amplifier Module. There’s also a InvenSense MP67B 6-axis gyroscope and accelerometer combo. The flipside of the mainboard features 16 to 128GB module of Hynix NAND flash (depending on customer’s needs), Murata Wi-Fi module and a Broadcom touchscreen controller. Still packed onto the tiny board is an ARM Cortex-M3 microcontroller (M8 motion coprocessor), NXP 65V10 NFC module + Secure Element along with a Qualcomm RF transceiver.

Lots of hardware in small space

Apple packed a large amount of hardware into a relatively small space with some improvements made over the company's previous flagship 5s.A larger battery, 401-ppi HD full 1080p Retina HD Display and a redesigned home button with integrated Fingerprint reader are just a few of the improvements integrated into the 6 Plus. Both versions of the 6 series run Apple's iOS 8 and are almost identical in design and hardware specs. The most obvious differences between the two are the display sizes (the iPhone 6 features a 4.7-inch screen) and Li-Ion batteries (the 6 uses an smaller 1810mAh battery), however the market price is different as well,

The iPhone 6 line hit the market today and some buyers were a little angry at the fact that some stores didn’t carry the 6 Plus, which is apparently hard to find at this point, unless you were lucky enough to pre-order it online.
